Editing events in the selection table

After selecting the event or point features records using the event selection tools and widgets available in the Roadway Characteristics Editor (RCE), you can edit and browse the tabulated results using the tools shown below. To select events, see the following:

• Selecting events by route
• Selecting events and routes by attribute
• Selecting events and routes by geometry
• Selecting events and routes by attribute

Note:

In cases where events are being modified on a route and you want to see the previous events on the route at that location, don't use the Add Linear Event widget. Instead, edit events in the Event Selection table or the Attribute Set table. If this method is used, you can see what was previously on the routes at the specified measures.

Tool	Tool Name	Description
	Clear Map Highlights	Clear all the event highlights on the map.
	Highlight All	Highlight all the selected events.
	Zoom To Highlighted Features	Zoom to highlighted events on the map.
	Zoom To Selected Features	Zoom to selected events on the map.
	Save Changes	Save the edits made in the event table.
	Calculate Field	Bulk edit a field's value.
	Delete Highlighted Features	Delete the highlighted features. Visibility of this tool is configurable in the RCE config file
	Export to CSV	Export the selected features in the CSV format as a file
	Advanced Table Sorting	Filter the attribute table view.
	Table Properties	Configure measure length and navigation to highlighted results.
	Select Point To Move	Select a point feature on the map to move the location. This tool only works with a point feature class like address points.
	Refresh Locks	Refresh the Events Attributes table to show new locks. This tool is enabled with conflict prevention. Note: This tool only works with events.
	Release Locks	Release selected locks from the Event Attributes table. This tool is enabled with conflict prevention. Note: This tool only works with events.

Editing individual records

1. Double-click a cell in the table to allow the value to be edited. If it is a point feature class, like address point, you can use the Select Point to Move tool to select and move the point feature.

   Edited cells in the table appear in yellow until saved.

   Note:

   Coded value and range domains are supported when configured for any field in the Event Attributes table.

2. To make the changes to the cells in the table permanent, click the Save Changes button .

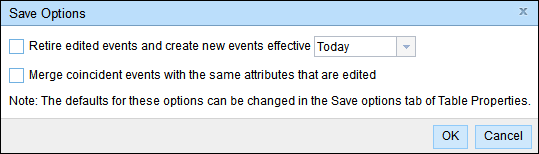

   A Save Options dialog box may appear depending on what you configured.

3. Select the save options.

   Deciding whether these options should be selected when saving changes should be determined by the motivation for making edits to the events.

   Note:

   Merge coincident events that are edited works only with nonreferent events.

   • If the edits are for error correction or a similar workflow, and the event record does not need to be retired and time sliced since the changes are correcting a mistake, do not check the Retire edited events and create new events effective from the selected date check box.
   • If the edits to event records represent changes to the events at a certain time (such as speed limit changing from 50 to 55 on 09/22/2014), check the Retire edited events and create new events effective from the selected date check box for the date the old event should be retired and the new event should begin.
   • If multiple events that are edited are coincident in measure and attributes, and you want to combine them into a single event record, check the Merge coincident events that are edited check box and any coincident events that are edited will be merged.
   • If you want to keep events coincident in measure and attributes as different event records, do not check the Merge coincident events that are edited check box.
4. Click OK.

Note:

• If the cell is gray, the cell cannot be edited.
• If the cell is white, the cell is editable.
• A yellow-colored cell shows that it has been edited in this edit session but the edits have not been saved.

Note:

If a message appears that is related to acquiring locks, the inability to acquire locks, the need to reconcile, and so on, Roads and Highways conflict prevention is enabled. For more information about these messages, see Conflict prevention in the Roadway Characteristics Editor (RCE).

In the table, the following symbols in the first column denote the state of the locks.

Symbol	Description
	The event lock has been acquired by the user. The event is editable.
	The event lock has been acquired by another user or by the same user in another version of the data. The event is uneditable.
No symbol	No lock exists. Lock can be acquired.

Bulk editing event fields

If you want to enter the same value for a field in several events, follow the steps below.

1. Click the Calculate Field button on the toolbar of the Event Attributes table.

   The Field Calculator dialog box appears.

2. Select the field to be updated using the Update Field drop-down list.
3. Enter the field value.

   Note:

   Coded value and range domains are supported when configured for any field in the Event Attributes table.

4. Click OK.
5. Click the Save Changes button to save the edits.



   A Save Options dialog box may appear depending on what you configured.

6. Select the save options.

   Deciding whether these options should be selected when saving changes should be determined by the motivation for making edits to the events.

   • If the edits are for error correction or a similar workflow, and the event record does not need to be retired and time sliced since the changes are correcting a mistake, do not check the Retire edited events and create new events effective from the selected date check box.
   • If the edits to event records represent changes to the events at a certain time (such as speed limit changing from 50 to 55 on 09/22/2014), check the Retire edited events and create new events effective from the selected date check box for the date the old event should be retired and the new event should begin.
   • If multiple events that are edited are coincident in measure and attributes, and you want to combine them into a single event record, check the Merge coincident events that are edited check box and any coincident events that are edited will be merged.
   • If you want to keep events coincident in measure and attributes as different event records, do not check the Merge coincident events that are edited check box.
7. Click OK.

All the rows in the field get the updated value from step 3.

Note:

If you find an unavailable record, that is, none of its cells are editable, check to see if the event ID for that record is missing or null.

There are a couple of ways to prevent null event IDs when adding events:

• Ensure the event ID field's data type is a string with a minimum length of 32 characters. In such cases, when adding a new event and not providing a specified event ID, the RCE automatically assigns a GUID to the event.
• If the event ID data type is not a string with a minimum of 32 characters, the RCE will not automatically assign a GUID for the event. In such cases, define attribute sets to designate the event ID as an attribute for input. For more information about configuring and defining attribute sets, see Producing attribute sets and Configuring attribute sets.
