Creating a segment that represents a distance

The Segment Distance function creates a segment based on two input coordinates and a specified distance. The segment can be used to represent a distance that extends from the first coordinate, though it may not necessarily connect with the second coordinate.

1. Start ArcMap.
2. On the menu bar, click Customize > Toolbars > Production Feature Builder.
3. Click the Feature Builder button on the Production Feature Builder toolbar.

   The Feature Builder window appears.

   Sugerencia:

   The Feature Builder window can be placed anywhere in ArcMap, or in the Table Of Contents window, with the aid of the arrows showing the possible placement positions.

4. Choose Segment Distance in the list on the Functions tab.



5. Define a coordinate for the start point of the polyline by doing one of the following:
   • Click the Pinprick tool on the Production Feature Builder toolbar and click on the map
   • Type the coordinates in the cells on the Input tab in the Coordinates area.

   Sugerencia:

   To view the input coordinates on the map, double-click the row headers for each coordinate.

6. Repeat step 5 to define a coordinate for the end point of the segment.
7. Click the cell next to Distance and type a value.

   This is the distance the segment is going to extend from the first coordinate. The default unit is Nautical Miles.

   Sugerencia:

   Right-click the parameter name and change the unit of measurement. If you change the unit of measurement after defining a value, the value is converted to the new unit of measurement, and you may need to redefine the value.

8. Click the Execute button .

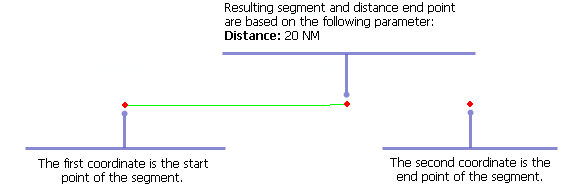

Depending on the locations of the two coordinates and the distance specified, the resulting segment may not connect the two coordinates.

Sugerencia:

If the segment and endpoint do not appear, click the Add Scratch Data Layers button at the top of the Feature Builder window.
