Creating a simple polyline

Disponible con licencia de Production Mapping.

The line is created based on the coordinates you define on the Input tab in the Coordinates area on the Feature Builder window and can be used as part of a more complex geometry or to create a new geometry.

1. Inicie ArcMap.
2. On the menu bar, click Customize > Toolbars > Production Feature Builder.
3. Click the Feature Builder button on the Production Feature Builder toolbar.

   The Feature Builder window appears.

   Sugerencia:

   The Feature Builder window can be placed anywhere in ArcMap, or in the Table Of Contents window, with the aid of the arrows showing the possible placement positions.

4. If the scratch dataset has not been added to the table of contents, click the Add Scratch Data Layers button at the top of the Feature Builder window.

   The dataset is added to the map using the current spatial reference.

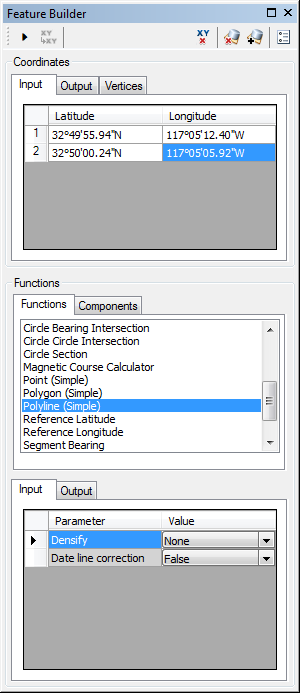

5. Choose Polyline (Simple) in the list on the Functions tab.



6. Define a coordinate for the start point of the polyline by doing one of the following:
   • Click the Pinprick tool on the Production Feature Builder toolbar and click the map
   • Type the coordinates in the cells on the Input tab in the Coordinates area.

   Sugerencia:

   To view the input coordinates on the map, double-click the row headers for each coordinate.

7. Click the row header for the second row in the coordinates list.

   Sugerencia:

   Press the right or down arrow key on your keyboard to move the cursor to the next row or add a new row.

   Sugerencia:

   You can create additional rows by right-clicking the new row that has been created and clicking Insert After.

8. Repeat steps 6 and 7 for the remaining coordinates you want to include in the polyline.

   Nota:

   To delete a row in the coordinates list, you can press SHIFT + DELETE.

9. Press the W key and click the header row for the last coordinate you want to define.
10. Repeat step 5 to define the coordinate for the endpoint of the polyline.
11. Click the drop-down arrow next to Densify and choose an option for determining the amount of space that can be allowed between vertices in the line.
    • Great Circle—The shortest distance between two points on a sphere
    • Linear—A cartesian plane
    • None—Has no densification
    • Rhumbline—A line of constant bearing
12. If necessary, click the drop-down arrow next to Reverse draw direction and choose True for drawing the polyline across the line of 180° longitude.

    This is the direction in which the line will draw with respect to the line of 180° longitude in the projected coordinate system.

13. Click the Execute button .

    A polyline appears on the map.

14. Click the Output tab in the Functions area.

A value appears for the Length parameter. This represents the length of the line that has been created and includes all the extra coordinates. The value is calculated in nautical miles by default but can be changed to other units of measure.
