Creating an arc based on an azimuth and endpoint

Disponible con licencia de Production Mapping.

The Arc (Azimuth and End Point) function creates an arc, which can be used as part of a more complex polygon geometry. For aviation purposes, this function creates an AF leg according to ARINC Specification 424.

Nota:

The radius is calculated using the distance between the endpoint and the centerpoint; there is no separate parameter for the radius in the function.

1. Inicie ArcMap.
2. On the menu bar, click Customize > Toolbars > Production Feature Builder.
3. Click the Feature Builder button on the Production Feature Builder toolbar.

   The Feature Builder window appears.

   Sugerencia:

   The Feature Builder window can be placed anywhere in ArcMap, or in the Table Of Contents window, with the aid of the arrows showing the possible placement positions.

4. If the scratch dataset has not been added to the table of contents, click the Add Scratch Data Layers button at the top of the Feature Builder window.

   The dataset is added to the map using the current spatial reference.

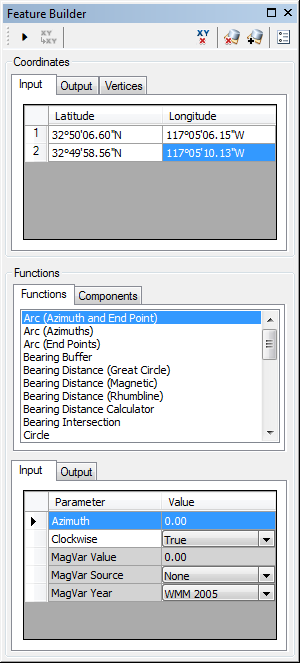

5. Choose Arc (Azimuth and End Point) in the list on the Functions tab.



6. Define a coordinate for the start point of the polyline by doing one of the following:
   • Click the Pinprick tool on the Production Feature Builder toolbar and click the map
   • Type the coordinates in the cells on the Input tab in the Coordinates area.

   Sugerencia:

   To view the input coordinates on the map, double-click the row headers for each coordinate.

7. Repeat step 6 to define a coordinate for the endpoint of the geodesic arc.
8. Click the cell next to Azimuth and type a value for the starting azimuth.

   The azimuth is the arc's starting azimuth relative to the centerpoint. Azimuth values are measured from north (0°). The default units is degrees.

   Sugerencia:

   You can right-click the parameter name and change the unit of measurement. If you change the unit of measurement after defining a value, the value is converted to the new unit of measurement, and you may need to redefine the value.

9. If necessary, click the drop-down arrow next to Clockwise and choose False.

   This indicates whether or not the arc is created in a clockwise direction. There are two options:

   • True—The arc is created in a clockwise direction based on the first input coordinate and the Azimuth.
   • False—The arc is created in a counterclockwise direction based on the first input coordinate and the Azimuth.
10. If necessary, click the cell next to MagVar Value and type a value for the magnetic variation.

    This can be a specified value or from a field defined in the MagVar Source parameter. The default unit is degrees.

    Learn more about the magnetic variation value

    Sugerencia:

    Right-click the parameter name and change the unit of measurement. If you change the unit of measurement after defining a value, the value is converted to the new unit of measurement, and you may need to redefine the value.

Sugerencia:

Right-click the parameter name and change the unit of measurement. If you change the unit of measurement after defining a value, the value is converted to the new unit of measurement, and you may need to redefine the value.

11. If necessary, click the drop-down arrow next to MagVar Source and choose a source for the magnetic variation.

    This is the source of the magnetic variation value.

    Learn more about the magnetic variation source

12. If necessary, click the drop-down arrow next to MagVar Year and choose a different year for the World Magnetic Model.

    This is the year associated with the magnetic variation value.

    Nota:

    You can only choose a value for MagVar Year if Magnetic Model is selected for the MagVar Source property.

    Learn more about the magnetic variation year

13. Click the Execute button .

An arc is created between the azimuth and endpoint.
