Adding a new field to the collection or extended metadata display

The customization of your Bathymetry Information System (BIS) metadata schema ensures that your metadata fields and their values continue to meet your business requirements. ArcGIS Bathymetry allows you to add new metadata fields to the Manage Collections and Add Bathymetry dialog boxes and the Explore Bathymetry and Compose Surface windows. For example, you may need to add a new text field to store hyperlinks related to the dataset.

The following steps outline adding a new text field to the collection metadata schema. These steps can also be used to add a text field to the extended metadata schema.

If you use multiple BIS geodatabases that require custom metadata, you will need to make changes for each of those BIS geodatabases individually.

If you need to make major configuration changes to your collection or extended metadata schema, it is recommended that you make a backup copy of the schemas so that you can revert to your previous configuration if necessary. The location of your current metadata schema can be found in the Paths pane on the Manage BIS Settings window.

1. Start ArcMap.
2. Click Customize > Toolbars > Bathymetry on the main menu to activate the Bathymetry toolbar if necessary.
3. Click the Manage BIS Settings button on the Bathymetry toolbar.

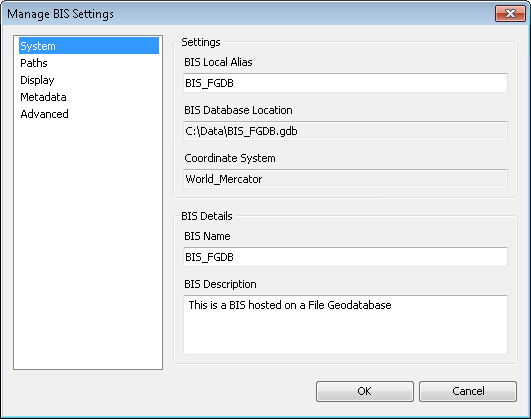

   The Manage BIS Settings dialog box appears. The settings for your active BIS geodatabase are shown in this dialog box.

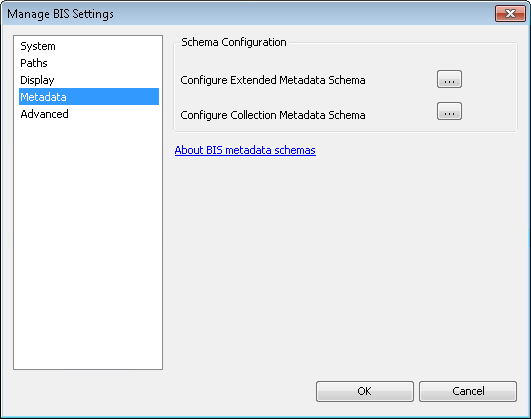

4. Click Metadata.



5. Click the ellipsis button (…) next to the metadata schema for which you want to add a field.

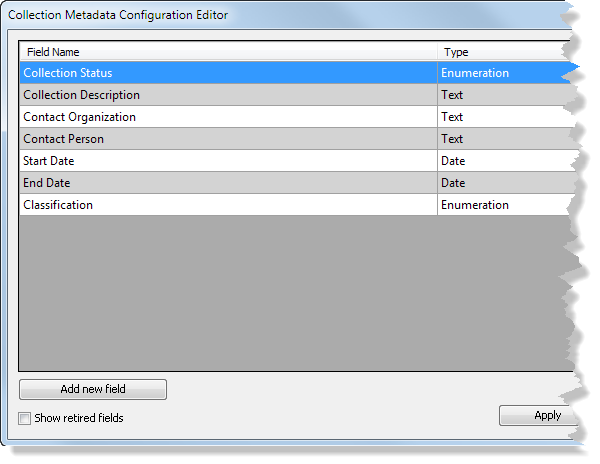

   The Metadata Configuration Editor dialog box appears.



   This example uses the collection metadata schema.

   ヒント:

   New metadata fields should be added prior to adding bathymetry datasets to the BIS geodatabase. The new fields will be visible in datasets that have already been associated with a collection, however, field values will not be applied to those datasets and can be applied manually using the Edit Metadata dialog box available from the Explore Bathymetry and Compose Surface windows.

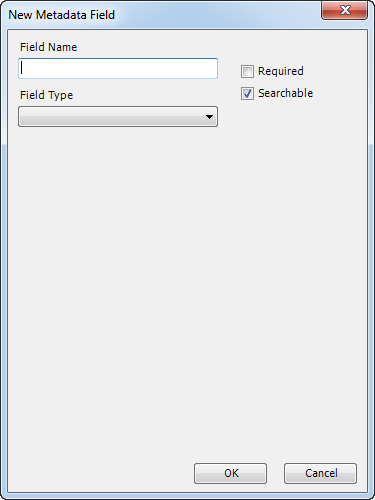

6. Click Add new field.

   By default, new fields are searchable and are not required.



   ヒント:

   If the new field you want to add is similar to an existing field, you can right-click the existing field and click Copy Field. This will create a copy of that field’s properties, allowing you to quickly create the new field.

7. Uncheck the Searchable check box if you don't want to allow users to filter or sort bathymetry data based on the metadata field's value in the Explore Bathymetry and Compose Surface windows.
8. Check the Required check box if you want the field to be required when adding bathymetry datasets.
9. Click the Field Type drop-down arrow and choose one of the following:
   • Text
   • Date
   • Enumeration
   • Integer
   • Double



   For more information on field types, see Data types, relation types, and restrictions for collection and extended metadata.

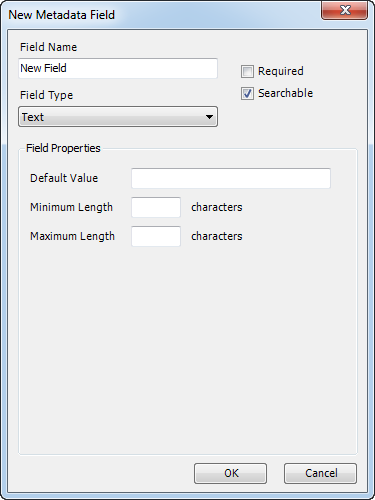

10. Type the applicable field property values in the text box.
11. [OK] をクリックします。

    The Metadata Configuration Editor dialog box appears.

    ヒント:

    Before clicking Apply or OK on the metadata configuration editor dialog box, you can remove any newly created fields by clicking the red X next to the corresponding field. Similarly, if you want to cancel the creation of all newly added fields, click Cancel to exit the Metadata Configuration Editor dialog box; doing so will also discard any changes made after you last clicked Apply.



12. Click OK to save and close the Metadata Configuration Editor dialog box.

    Although the metadata configuration editor updates immediately, you need to close and restart ArcMap for the schema changes to be reflected in other dialog boxes and windows in ArcMap.

13. Close ArcMap.
14. Start ArcMap.
15. Click the Manage Collections button on the Bathymetry toolbar.

    The Manage Collections dialog box appears.

Your new field is now visible and editable.
