Creating a buffered bearing

Production Mapping ライセンスで利用できます。

The Bearing Buffer function creates a polygon feature that is based on a single input coordinate.

Example of input and output for the Bearing Buffer function
  1. Start ArcMap.
  2. On the menu bar, click Customize > Toolbars > Production Feature Builder.
  3. Click the Feature Builder button Feature Builder on the Production Feature Builder toolbar.

    The Feature Builder window appears.

  4. If the scratch dataset has not been added to the table of contents, click the Add Scratch Data Layers button Add scratch data layers at the top of the Feature Builder window.

    The dataset is added to the map using the current spatial reference.

  5. Choose Bearing Buffer in the list on the Functions tab.

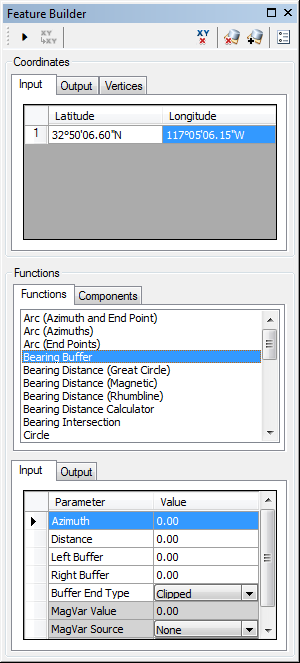

    Feature Builder window when the Bearing Buffer function is selected

  6. Define a coordinate for the start point of the polyline by doing one of the following:
    • Click the Pinprick tool Pinprick on the Production Feature Builder toolbar and click the map
    • Type the coordinates in the cells on the Input tab in the Coordinates area.

  7. Click the cell next to Azimuth and type the azimuth value.

    The Azimuth value is the angle at which the polygon is going to be created. The default unit is degrees.

  8. Click the cell next to Distance and type the distance value.

    The Distance value represents the amount of space between the input coordinate and the buffer. The default unit is Nautical Miles.

  9. Click the cell next to Left Buffer and type the value for the left buffer.

    This is the amount of space that should exist to the left of the input coordinate. The default unit is Nautical Miles.

  10. Click the cell next to Right Buffer and type the value for the right buffer.

    This is amount of space that should exist to the right of the input coordinate. The default unit is Nautical Miles.

  11. Click the drop-down arrow next to Buffer End Type and choose a style for the ends of the buffer.

    This is the type of corners added to the ends of the buffer segments. There are two options for this:

    • Clipped—The corners of the buffer are squared, so the geometry is rectangular.
    • Elliptic—The corners of the buffer are round, so the geometry is an oval.
  12. If necessary, click the cell next to MagVar Value and type a value for the magnetic variation.

    This can be a specified value or from a field defined in the MagVar Source parameter. The default unit is degrees.

    Learn more about the magnetic variation value

  13. If necessary, click the drop-down arrow next to MagVar Source and choose a source for the magnetic variation.

    This is the source of the magnetic variation value.

    Learn more about the magnetic variation source

  14. If necessary, click the drop-down arrow next to MagVar Year and choose a different year for the World Magnetic Model.

    This is the year associated with the magnetic variation value.

    Learn more about the magnetic variation year

  15. Click the Execute button Execute.

A polygon is created based on bearing line and buffer distances.
