Setting a coordinate system for data frame rules

Доступно с лицензией Production Mapping.

The Coordinate System tab on the Data Frame Rules dialog box allows you to specify a coordinate system to apply to a data frame. When you apply data frame rules, the active data frame's coordinate system changes to the system specified in those rules. You can choose a method that will be used to set the coordinate system of a data frame when applying data frame rules. You can choose one of the following methods:

• Set a fixed coordinate system for a data frame.
• Set a data frame's coordinate system by automatically calculating a Universal Transverse Mercator (UTM) zone from a data frame's extent.
• Set a data frame's coordinate system by automatically computing central meridians and parallels from a data frame's extent and a base coordinate system.
• Set a data frame's coordinate system by reading a value from a feature in a feature class or layer file. The value must be a coordinate system string. The feature class (or feature class referenced in the layer file) must contain coordinate system zones. You can use this option for a data frame extent that intersects more than one coordinate system zone, such as UTM zones 12N and 13N.

1. Запустите ArcMap.
2. Загрузите данные на карту, если необходимо.
3. Switch to layout view.
4. On the main menu, click Customize > Toolbars > Production Cartography.
5. Click the Layout window button on the Production Cartography toolbar.

   The Layout window appears.

6. Click the Apply Data Frame Rules button on the Layout window.

   The Apply Data Frame Rules dialog box appears.

7. If necessary, click the Source Data Frame drop-down arrow and choose the source data frame.
8. Click the Properties button .

   The Data Frame Rules dialog box appears.

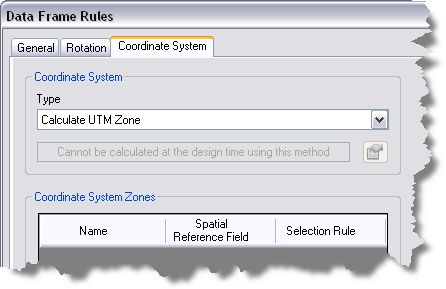

9. Click the Coordinate System tab.



10. Choose one of the following options for the coordinate system type:

    To use a predefined coordinate system	Click the Type drop-down arrow and choose Fixed. Click the Properties button . Choose a spatial reference, and click OK. Proceed to step 20.
    To calculate a UTM zone based on the active data frame extent	Click the Type drop-down arrow, and choose Calculate UTM Zone. Proceed to step 20.
    To calculate a central meridian and parallels based on the active data frame extent	Click the Type drop-down arrow, and choose Calculate Central Meridian and Parallels. Click the Properties button . Choose a spatial reference, and click OK. Proceed to step 20.
    To dynamically choose a coordinate system when the data frame's extent intersects more than one coordinate system zone	Proceed to step 11.

11. Click Load.

    The Open Feature Class or Feature Layer File dialog box appears.

12. Navigate to a coordinate system zone's feature class or layer file, and click OK.

    Примечание:

    The feature class must contain a spatial reference text field populated with coordinate system or projection file (.prj) format strings. The string must specify a zone projection such as UTM. The feature class must also have an integer field that contains coordinate system zone numbers.

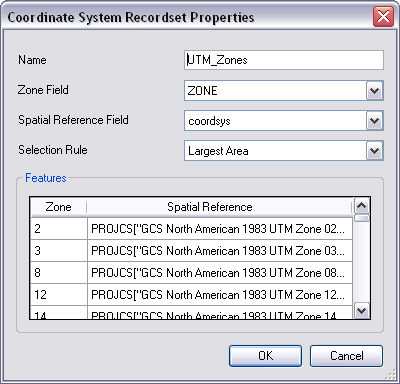

13. The Coordinate System Recordset Properties dialog box appears.
14. Type a name in the Name text box.
15. Click the Zone Field drop-down arrow, and choose the field that contains the zone numbers.
16. Click the Spatial Reference drop-down arrow, and choose the field that contains the spatial reference strings.
17. Click the Selection Rule drop-down arrow, and choose a selection rule. Selection rules include the following:
    • Largest Area—Applies the coordinate system from the feature with the largest area.
    • Smallest Area—Applies the coordinate system from the feature with the smallest area.
    • Highest Zone—Applies the coordinate system from the feature with the highest Zone Field value.
    • Lowest Zone—Applies the coordinate system from the feature with the lowest Zone Field value.

    The tool determines a coordinate system by applying a selection rule to the intersection of the data frame and the coordinate system zones feature class.



18. Нажмите ОК.

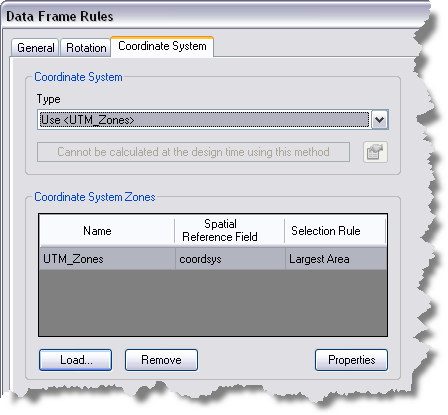

19. Click the Type drop-down arrow and choose Use <feature class or layer name>.



    Примечание:

    Click Remove to remove a highlighted feature class or layer file from the Coordinate System Zones list.

    Click Properties to display the Coordinate System Recordset Properties dialog box.

20. Click OK to set the data frame rules.
