Once you have created a specification and all the calculated representations and calculated fields for it, you may want to deactivate the Calculated Representations and Calculated Fields tabs on the Layer Properties dialog box. You can toggle the visibility of the two tabs on the Visual Specifications dialog box by checking or unchecking the Display Calculated Representations and Calculated Fields tabs check box. This allows you to determine whether the two tabs will appear on the Layer Properties dialog box. By default, the two tabs are displayed.
- Start ArcMap.
- Click the Visual Specifications button
on the Production Symbology toolbar.

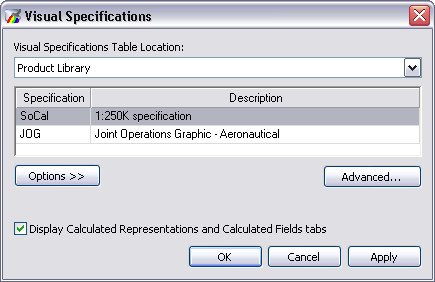

The Visual Specifications dialog box appears.
- Uncheck the Display Calculated Representations and Calculated Fields tabs check box if you do not want the Calculated Representations and Calculated Fields tabs to appear on the Layer Properties dialog box.
- Check the Display Calculated Representations and Calculated Fields tabs check box if you want the Calculated Representations and Calculated Fields tabs to appear on the Layer Properties dialog box.
- Click OK.
