Creating groups for an individual feature class

获得 Production Mapping 许可后可用。

With field configurations, you can choose to create groups for individual feature classes and tables or across different feature classes and tables. Grouping attributes allows you to organize the attribute fields into logical sets when they are displayed on the Create Attributes and Update Attributes windows. This is useful for feature classes with a large number of attributes because you can collapse groups you are not interested in to display only those attributes you want to see. If you want to have different groups set up for each table or subtype, you can set them up in the Field Configuration Manager dialog box. This can be useful when different subtypes have varying numbers of fields and you want to apply different groups to each one so editors know which fields have a higher priority than others.

For example, you may set up standard groups for attributes through the Edit Shared Fields dialog box but also want to create a separate group for the spatial attributes on a feature (length, width, angle of orientation, and so forth). This can also be useful when the feature class does not have subtypes and therefore has fields that would not appear in the Edit Shared Fields dialog box.

Once groups are created, fields that are not included in groups are placed in the Ungrouped group by default.

1. 启动 ArcMap。
2. 在主菜单上，单击自定义 > 工具条 > 生产编辑。
3. 单击生产编辑工具条上的产品库按钮 。

   随即出现产品库的树视图。



4. Define the product library workspace.
5. Ensure that the data model and data model version have been created for the schema.
6. Right-click the data model version you want to create groups for and click Manage Configurations.

   The Field Configurations dialog box appears.

7. Click Tables to Edit.

   The Choose Data Model Version Tables to Edit dialog box appears with a list of feature classes and tables in the data model.



8. Check the check boxes next to the feature classes and tables whose configurations you want to edit in the Choose Table(s) to Edit list.

   提示：

   You can right-click in the list and click Select All or Clear All to check or uncheck all the check boxes, respectively. You can also right-click in the list and choose Expand All or Collapse All to display or hide all the subtypes within the feature classes.

9. Click OK.

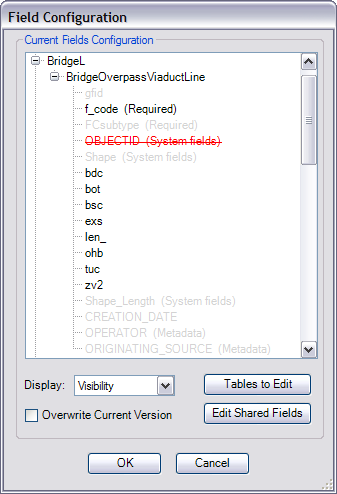

   The Field Configuration dialog box appears with the selected feature classes and tables in the Current Fields Configuration list.

10. Expand a feature class, right-click a field to add to a group, point to Groups, then type a group name in the text box.

    提示：

    You can select multiple fields at once by pressing and holding the Ctrl or Shift keys when you click fields in a feature class or subtype.

    注：

    The group name cannot be edited when it is created in the Field Configuration dialog box. You can only rename groups in the Edit Shared Fields dialog box.

11. Press Enter.

    The new group is created and the selected field is added to the group.


12. Repeat steps 10 and 11 as needed to create groups for other feature classes or subtypes.
13. 单击确定。
