Adding and removing intersecting layers

Note:

This functionality will be removed from the next ArcMap release and added to ArcGIS Pro.

The participating intersecting layers that make up the LRS intersection feature class can be added or removed using the following steps.

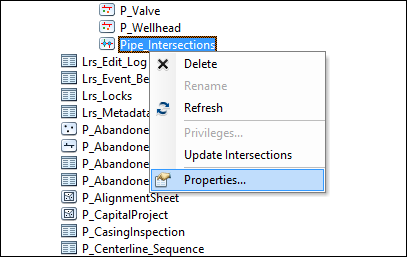

1. Right-click the LRS intersection feature class and click Properties.



   The LRS Intersection Class Properties dialog box appears.



2. Click Next.

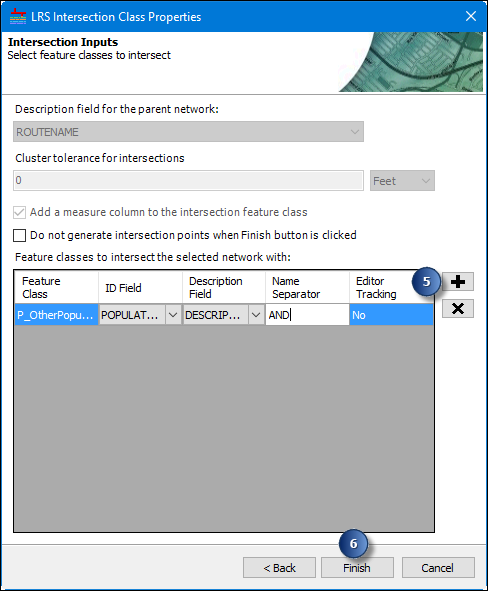

   The Intersection Inputs dialog box appears.



3. Click the feature class row in the table.

   The row is highlighted in blue.

4. Click the Remove button.

   The feature class is removed from the intersections.

5. Click the Add data button , and then browse and select the new feature class that will intersect. Repeat this step for any other feature classes you want to be added to the intersections.



6. Click Finish.

   The intersections are added to the LRS intersection feature class.
